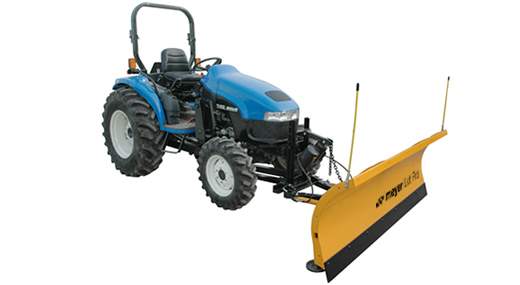

If you’re tackling the kind of jobs that require a utility tractor during the year, that probably means you have a lot of snow-covered land during the winter. Take charge of that snow with Meyer’s Heavy-Duty Agriculture Tractor (H.A.T.) mount. It allows you to easily attach Meyer moldboards to leading brands of utility tractors including John Deere, Case, New Holland, Cub Cadet, Kubota, Massey Ferguson, Kioti and more.

    Performance

    Performance

    Available in Full-Trip or Bottom-Trip

    Meyer understands that snow conditions vary. That's why the H.A.T. mount accepts both full-trip and bottom-trip moldboards. The “tripping” action absorbs and dissipates the shock caused by obstructions saving wear and tear on the driver, tractor and plow. With bottom-trip blades, only the lower portion of the blade gives way so the entire load is not lost. Full-trip action provides maximum protection by enabling the whole blade to “trip” forward. For heavy snow or icy conditions, bottom-trip moldboards are a popular choice. Plus, all Meyer bottom-trip moldboards are available with a reversible cutting edge for longer wear-life.

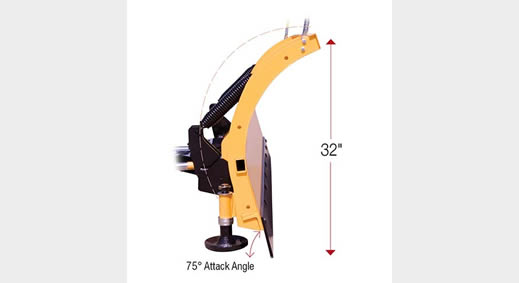

    Height/Attack Angle

    The Lot Pro and Road Pro-32 (full-trip) and Diamond Edge (bottom-trip) move more snow in less time. These moldboards are the tallest, most aggressive snowplow in their respective categories. The bold designs boast 32-inch height, and at least a 75-degree attack angle and precise curvature. These features deliver superior path clearing and snow-rolling action.

    Height/Attack Angle

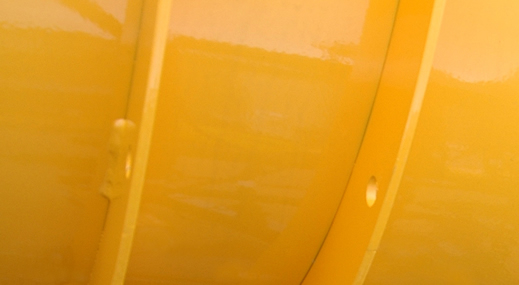

    Dura-Slick Paint with Teflon®

    All Meyer carbon steel moldboards are painted with Meyer Dura-Slick™ Paint. This automotive-style paint with Teflon® is baked on to the steel for durability and better snow-rolling action. It's the reason why Meyer plows throw snow farther and move it faster than the competition.

    Dura-Slick Paint with Teflon

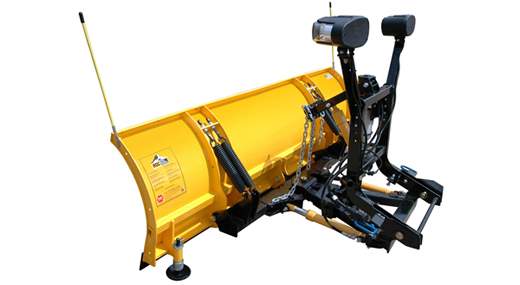

    Reliability

    Reliability

    In the snowplowing business, downtime is not an option. That’s why the Meyer Lot Pro, Road Pro-32 and Diamond Edge are built using Reliable Over-time Construction (ROC)… the detailed things we do to make our plows more rugged and reliable. ROC is the result of manufacturing improvements and state-of-the-art technology combined with stringent quality control procedures.

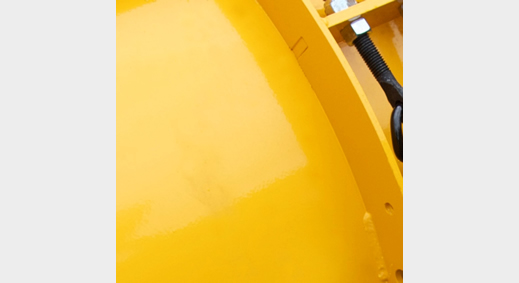

    Slot and Tab Construction

    Meyer couldn't offer the industry's best warranty on our plows if we didn't build them using slot and tab construction. This method of construction makes for a stronger, more precise fitting plow. Laser cut steel components are assembled using robotic welders that never tire and never make a mistake. It's why every plow comes off the line ready to provide years of trouble-free service.

    Slot and Tab Construction

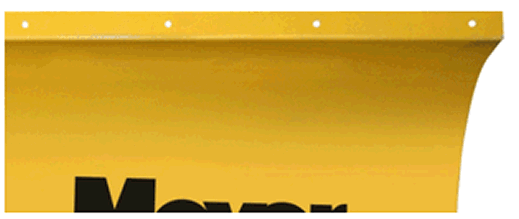

    Pre-drilled Deflector Holes

    Meyer moldboards are manufactured with pre-drilled holes which make it easy to add a snow deflector. This means you save time when adding this important safety feature that ensures snow will not impair your view through the windshield. Since they are pre-drilled at the factory, the holes are sealed with Dura-Slick paint to help prevent rust.

    Pre-drilled Deflector Holes

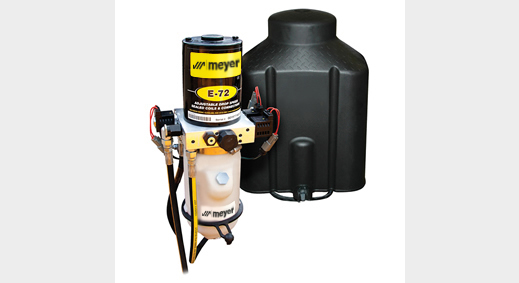

    Reliable and Responsive Operation

    The driving force behind every Meyer snowplow is a reliable and responsive hydraulic system. Triple-layered sealed coils and connectors virtually eliminate corrosion and moisture often found in electrical and mechanical systems. And unlike competitive systems, all Meyer hydraulic systems ship standard with custom-molded covers to help protect the units from road salt and grime.

    5-Year America's Best Warranty

    Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration. The competition can’t beat that.

    5 Year Warranty

    Ease of Use

    Ease of Use

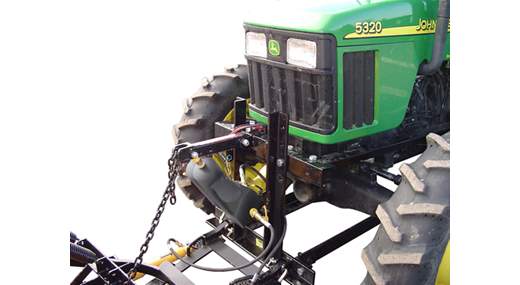

    H.A.T. (Heavy-duty Agricultural Tractor) Custom Mount

    There are a number of options for operating a Meyer snow plow with a utility tractor. How much blade mobility and remote control you need, combined with your vehicle’s original equipment, will determine the best option for you. Meyer provides accessory kits containing everything required for your vehicle to have:

    • Full remote control (up, down, right, left) using an independent hydraulic system

    • Remote Up/Down using the vehicle’s central hydraulic system

    • Manual angling (right and left) which does not require any hydraulic tie-in

    The mounting hardware or "H. A. T. Mount" is required for all of the above. It consists of all the brackets (angle iron, nuts, bolts, etc.) to install a Meyer snow plow.

    Hands-Free Plowing - A Meyer Exclusive

    Meyer knows controller preferences vary by driver, that’s why we offer three options. Choose the controller that’s right for you: EZ-1 pistol grip, joystick or touch pad.

    Both the Meyer EZ-1 pistol grip controller and joystick controller feature diagnostics and a Hands-Free Plowing (HFP) mode. When activated, HFP uses the shift lever to control the up/down movement of the blade. The EZ-1 pistol grip controller also features double-click technology.  Simply double-click a button, and the moldboard will automatically move in that direction without having to keep your finger on the button.  The touchpad controller features backlit buttons, easy-to-use functionality and diagnostics.

    Hands-Free Plowing

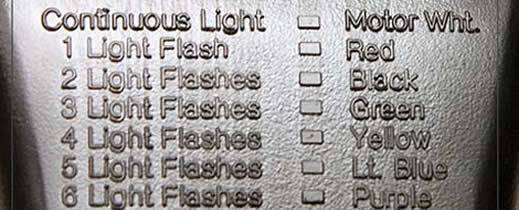

    System Diagnostics

    When you're out plowing, issues arise. Meyer makes it easy to get you back on the road using our system diagnostics found on the back of our pistol grip controllers. Just match the controller's flashing light sequence with the chart on the back of the controller to isolate the issue. Not only does this reduce your downtime, it gets you back doing what you do best – plowing snow.

    System Diagnostics

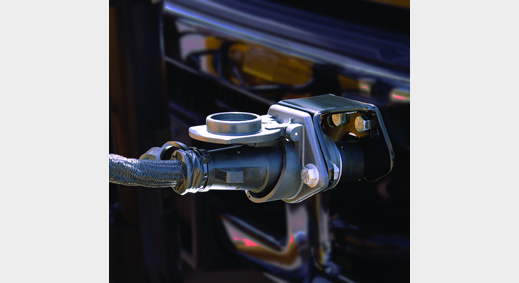

    One-Piece Plug (Patented)

    Unlike competitors who have up to three plugs, the Meyer EZ-Mount Plus system comes with a one-piece patented plug to connect/disconnect the plow from the vehicle. No more fumbling in the middle of the night trying to figure out which plug goes where. The one-piece plug gets you back in the cab faster and easier.

    One-Piece Plug

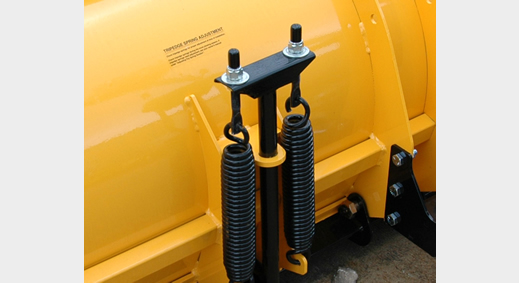

    Field Adjustable Trip Springs

    While out plowing, contractors often need to make adjustments to their plow, and they don't want to go back to the shop to do it. That is why Meyer makes their plows with field adjustable trip springs. This allows more time to plow and less time back at the shop.

    Field Adjustable Trip Springs

    Compatibility

    Compatibility

    The Meyer H. A. T. mount allows you to easily attached Meyer moldboards to most utility tractors from the leading brands in the industry.

    Specifications

    Get to know the Meyer snowplows for utility tractors.



    Quick Facts:

    • Type: Full-Trip or Bottom-Trip

    • Vehicle: Utility tractors

    • Construction: Steel & Polyethylene

    • Part #: 09402 Blade Type: Full-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 92" 234 cm Angling Rams: 1-1/2 x 10" 3,81 cm x 25,40 cm Weight Complete: 801 lbs 363 kg
    • Part #: 09400 Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1-1/2 x 10" 3,81 cm x 25,40 cm Weight Complete: 766 lbs 347 kg
    • Part #: 09401 Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1-1/2 x 10" 3,81 cm x 25,40 cm Weight Complete: 783 lbs 355 kg
    • Part #: 09403 Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1-1/2 x 10" 3,81 cm x 25,40 cm Weight Complete: 816 lbs 370 kg
