Heavy-duty Plows That Don’t Lie Down On The Job

Built for contractors who don’t have a minute to waste, the Meyer Diamond Edge plow features the tallest and most aggressive bottom-trip, contractor-class moldboard on the market. Boasting a 32" height and 70-degree attack angle, this plow attaches to 3/4-ton and larger trucks and produces better overall clearing performance in less time. The Diamond Edge is available with your choice of two mounting systems:  Standard Operating System and EZ-Mount Plus.  Both offer premium features such as self-diagnostics and hands-free plowing.  The Standard Operating System also offers industry-leading ground clearance.

    Performance

    Not All Yellow Plows Are Alike…

    With the tallest and most aggressive moldboard, the Meyer Diamond Edge moves more snow than competitive contractor plows.  The bottom-trip feature keeps the moldboard upright and performing, while the lower portion gives way when obstacles are struck, so you can keep plowing without losing the entire load. Plus the trip-edge absorbs and dissipates the shock caused by obstructions saving wear and tear on the driver, truck and plow.

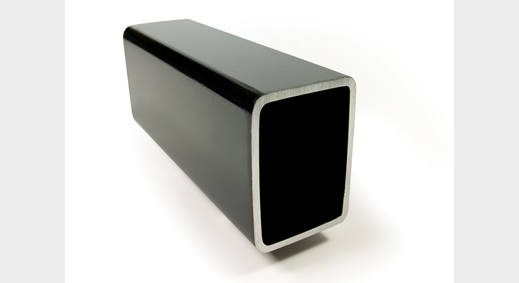

    Highway Plow-inspired Black Iron

    Behind the moldboard is totally redesigned "black iron" consisting of robust, tubular steel A-frame and pivot bar. Highway plow-inspired, this simplified design creates a stronger plow at key pressure zones and more evenly distributes the load. The pressure zones are further enhanced by three, reinforced points-of-contact and a tubular bar along the entire back of the moldboard for increased torsional strength.

    Highway Plow-inspired Black Iron

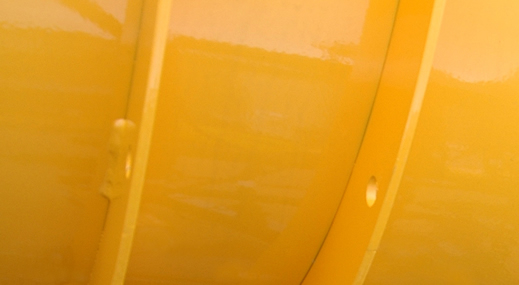

    Dura-Slick Paint with Teflon®

    All Meyer carbon steel moldboards are painted with Meyer Dura-Slick™ Paint. This automotive-style paint with Teflon® is baked on to the steel for durability and better snow-rolling action. It's the reason why Meyer plows throw snow farther and move it faster than the competition.

    Dura-Slick Paint with Teflon

    Light The Night With Exclusive Nite Saber® LED

    Plowing in the dark is a fact of life. You need the best light possible to give your customers the best possible result. That’s why all Meyer Super-V3 plows come equipped with brilliant Nite Saber® LED lights. Not only are they brighter than standard lights, they have a longer life expectancy and draw less power from your electrical system. Nite Saber® lights are fully adjustable and iso-mounted to resist vibration.

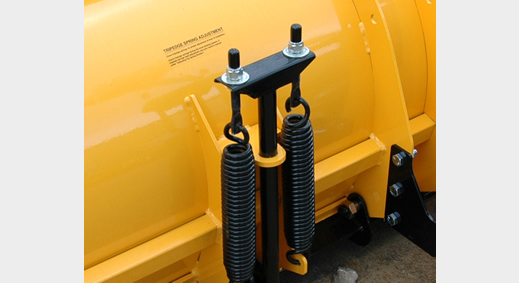

    Feild Adjustable Trip Springs

    While out plowing, contractors often need to make adjustments to their plow, and they dont want to go back to the shop to do it. That is why Meyer makes their plows with field adjustable trip springs. This allows more time to plow and less time back at the shop.

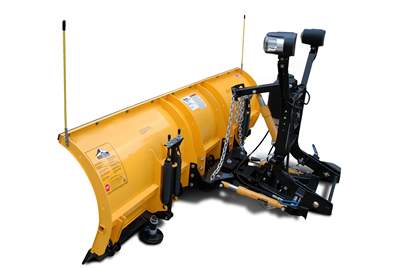

    Reliability

    Reliability

    In the snow plowing business, downtime is not an option. That’s why the Diamond Edge is built using Reliable Over-time Construction (ROC)…the detailed things we do to make our plows more rugged and reliable. ROC is the result of manufacturing improvements and state-of-the-art technology combined with stringent quality control procedures.

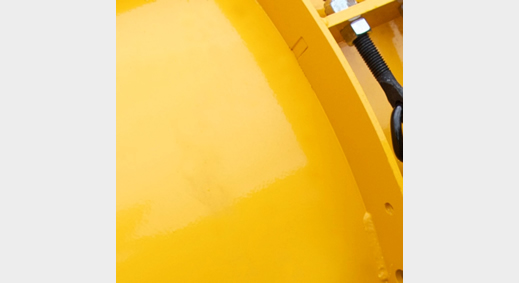

    Slot and Tab Construction

    Meyer couldn't offer the industry's best warranty on our plows if we didn't build them using slot and tab construction. This method of construction makes for a stronger, more precise fitting plow. Laser cut steel components are assembled using robotic welders that never tire and never make a mistake. It's why every plow comes off the line ready to provide years of trouble-free service.

    Slot and Tab Construction

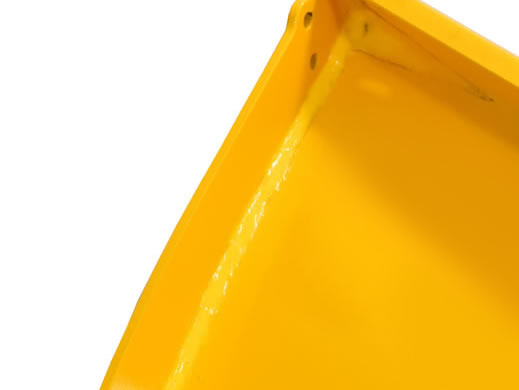

    Continuously Welded Ribs

    Meyer plows are continuously welded on the outside ribs. This Meyer exclusive not only gives our plows a more rugged look, but more importantly, it increases their strength and performance so they can handle anything Mother Nature sends their way.

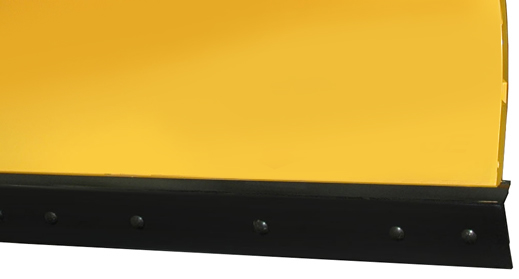

    Reversible Cutting Edge is Standard Equipment

    All Diamond Edge plows come standard with a reversible center hole punched cutting edge for longer moldboard wear life.

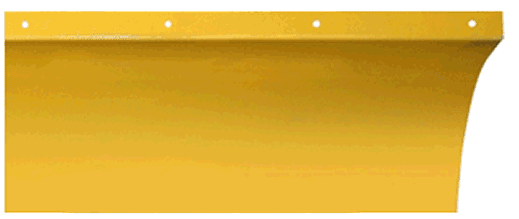

    Pre-drilled Deflector Holes

    Meyer Diamond Edge moldboards are manufactured with pre-drilled holes, which makes it easy to add a snow deflector. This means you save time when adding this important safety feature that prevents snow from impairing your view through the windshield. Since they are pre-drilled at the factory, the holes are sealed with Dura-Slick paint to help prevent rust.

    Pre-drilled Deflector Holes

    5-Year America's Best Warranty

    Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration.  The competition can’t beat that.

    5 Year Warrenty

    Ease of Use

    Ease of Use

    Choice of Two Operating Systems That Make Your Job Easier

    Meyer is pleased to offer two operating systems: The all-new Standard Operating System™ and the EZ-Mount Plus™ system. The Standard Operating System* has been designed to provide industry-leading ground clearance and is equipped with an adjustable drop speed and Nite Saber LED lights. The EZ-Mount Plus system offers premium features such as self-diagnostics and hands-free plowing. Both conveniently attach or detach in under a minute and leave the vehicle with an off-the-assembly line appearance when not attached.

    STANDARD OPERATING SYSTEM

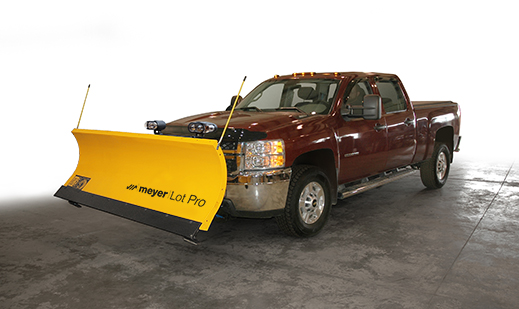

    Industry-Leading Ground Clearance

    The Standard Operating System offers up to 9” of ground clearance for improved stacking and transport height. You’ll carry your plow high and be less prone to bottoming out.

    Light The Night With Exclusive Nite Saber® LED

    Plowing in the dark is a fact of life. You need the best light possible to give your customers the best possible result. That’s why all Meyer Diamond Edge plows come equipped with brilliant Nite Saber® LED lights. Not only are they brighter than standard lights, they have a longer life expectancy and draw less power from your electrical system. Nite Saber® lights are fully adjustable and iso-mounted to resist vibration.

    Encased Power Unit With Adjustable Drop Speed

    The Standard Operating System has a streamlined appearance with an encased power unit and patented cable management system for reliable service. It also features an adjustable drop speed for varying plowing conditions and preferences.

    Easy-To-Use Controller

    The Standard Operating System is controlled using a pistol grip controller featuring Hands-Free Plowing, one-button functionality and diagnostics.

    EZ-Mount Plus System

    Hands-Free Plowing - A Meyer Exclusive

    Meyer knows controller preferences vary by driver, that’s why we offer two options for Meyer Lot Pro plows:  EZ-1 deluxe pistol grip or joystick.  Both controllers feature diagnostics and a Hands-Free Plowing (HFP) mode. When activated, HFP uses the shift lever to control the up/down movement of the blade. The EZ-1 pistol grip controller also features double-click technology.  Simply double-click a button, and the moldboard will automatically move in that direction without having to keep your finger on the button.

    One-Piece Plug (Patented)

    Unlike competitors who have up to three plugs, the Meyer EZ-Mount Plus system comes with a one-piece patented plug to connect/disconnect the plow from the vehicle. No more fumbling in the middle of the night trying to figure out which plug goes where. The one-piece plug gets you back in the cab faster and easier.
    One-Piece Plug

    System Diagnostics

    When you're out plowing, issues arise. Meyer makes it easy to get you back on the road using our system diagnostics found on the back of our pistol grip controllers. Just match the controller's flashing light sequence with the chart on the back of the controller to isolate the issue. Not only does this reduce your downtime, it gets you back doing what you do best – plowing snow.
    System Diagnostics

    Reliable and Responsive Operation

    The driving force behind every Meyer snow plow is a reliable and responsive hydraulic system. The EZ-mount plus triple-layered sealed coils and connectors virtually eliminate corrosion and moisture often found in electrical and mechanical systems. And unlike competitive systems, all Meyer hydraulic systems ship standard with custom-molded covers to help protect the units from road salt and grime.

    Fleet Management

    EZ-Mount Plus mounting systems are fleet-friendly because the moldboards and controllers are interchangeable. Attachment and detachment take only moments for unlimited vehicle transformations.

    Specifications

    Get to know the Diamond Edge plow.



    Quick Facts:

    • Type: Bottom-Trip

    • Vehicle: 3/4-ton trucks and larger

    • Construction: Steel 7’6” – 9’

    • Part #: 84352 Blade Type: Steel Trip Edge Moldboard Length: 8' 6" 259 cm Moldboard Height: 32-1/2" 83 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 92" 234 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 920 lbs 417 kg
    • Part #: 84350 Blade Type: Steel Trip Edge Moldboard Length: 7' 6" 229 cm Moldboard Height: 32-1/2" 83 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 82" 208 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 870 lbs 395 kg
    • Part #: 84351 Blade Type: Steel Trip Edge Moldboard Length: 8' 244 cm Moldboard Height: 32-1/2" 83 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 87" 221 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 890 lbs 404 kg
    • Part #: 84351 Blade Type: Bottom-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 87" 221 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 890 lbs 404 kg
    • Part #: 84351 Blade Type: Bottom-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 87" 221 cm Angling Rams: 1½” x 10" N/A x 25,40 cm Weight Complete: 890 lbs 404 kg
    • Part #: 74351K Blade Type: Bottom-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 87" 221 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 890 lbs 404 kg
    • Part #: 74351K Blade Type: Bottom-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 87" 221 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 890 lbs 404 kg
    • Part #: 84353 Blade Type: Steel Trip Edge Moldboard Length: 9' 274 cm Moldboard Height: 32-1/2" 83 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 98" 249 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 940 lbs 426 kg
    • Part #: 84353 Blade Type: Bottom-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 98" 249 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 940 426 kg
    • Part #: 84353 Blade Type: Bottom-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 98" 249 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 940 426 kg
    • Part #: 74353 Blade Type: Bottom-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 98" 249 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 940 lbs 426 kg
    • Part #: 74353K Blade Type: Bottom-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32 ½” N/A
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 98" 249 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 940 lbs 426 kg
