MDV Insert Hopper Spreader

MDV Insert Hopper Spreader

Highway-style Spreading For Medium-duty Trucks

Meyer offers more than 10 different configurations in our MDV line-up. All hoppers are made of stainless steel while power can be supplied via central hydraulics, gasoline motors or 12-volt electric motors.  You also have a choice of drag chain or auger conveyer systems. See specification for details.

Performance

Performance

Less Time Loading, More Time Spreading

The Meyer MDV provides smaller vehicles with the performance characteristics of a highway-style spreader. With 4.5 cubic yard capacity, this means less time loading and more time spreading. Similar competitive spreaders offer 25% less capacity than the Meyer MDV Spreader, so why settle for less? Many performance-enhancing components as standard on the MDV include:



Top Screens

Break-up large clumps of material which can cause damage to the drag chain and reduce performance.

Top Screens

Chain Shields

Built-in chain shields prevent material from building up in the drag chain and slowing you down.

Chain Shields

Inverted-V

Helps prevent material from bridging and slowing down the conveyor as you clear ice and snow.

Inverted-V

Baffle System

Meyer’s two internal and four external baffle adjustment systems help you place the material exactly where you want it. The Meyer MDV is equipped to handle salt, sand and salt/sand mixtures.

Baffle System

Reliability

Reliability

Designed for the needs of the professional contractor, Meyer’s MDV spreaders are designed to handle all that Mother Nature throws at you. Some of the key built-to-last features of our MDV line include:

  1. Slot and tab allows more a precise fit-up of our products, increasing reliability over the course of ownership.

  2. Spring-loaded front idler adjustments allow for smoother conveyer operation and sprockets to move in the event there is a jam in the conveyer.

  3. Continuous welding on the inside of the hopper to prevent materials from pitting and leading to premature rusting.

  4. Powder-coated paint for greater durability over the life of your spreader.

  5. Grease zerks at all critical points for keeping your investment up and running.

  6. Marine-grade actuator protects the inner workings from the elements and keeps your spreader operating even in the harshest environments (applied to gas models only).

  7. Stainless steel external baffle adjustment rods prevent the baffles from seizing and remaining stuck in one location.

Ease of Use

Ease of Use

Respond to an ice event at a moment’s notice

Meyer’s MDV operating system is fully controlled from the comfort of your vehicle’s cabin.

Meyer’s gas-driven MDV comes standard with wireless controls which means no wires need to run under your vehicle. All you have to do is load the spreader into your truck bed, and you’re ready to start spreading with your hand-held controller. On electric-driven models, you can use an in-cab variable speed controller with blast feature to adjust the conveyer and the spinner.

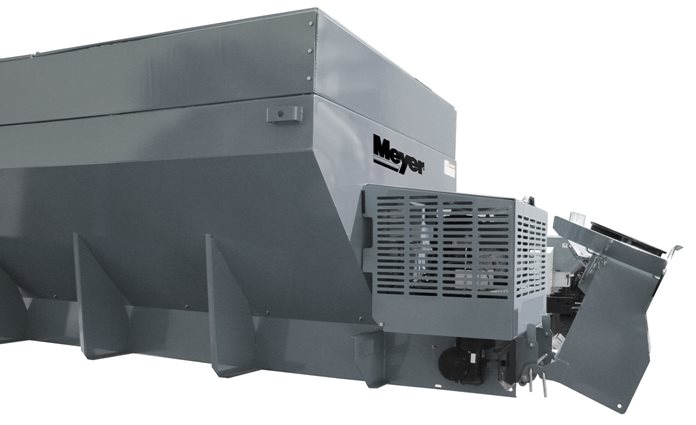

Swing-Up Spinner

Our swing-up spinner means it’s easy to move your MDV spinner out of the way.  And it is just as easy to unload any leftover material after a job is done.

Swing-Up Spinner

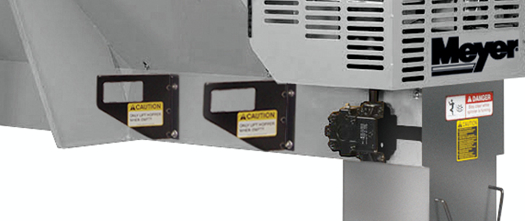

Fork Pockets

Thanks to Meyer’s patented fork pockets, all you need is a forklift to quickly install and remove your MDV spreader from your vehicle. And when it’s time to change the oil in your Meyer MDV engine, we included a convenient oil drain hose so you can easily drain the engine oil without creating a mess.

Fork Pockets

Specifications

Get to know the MDV insert hopper spreader.



Quick Facts:

  • Type: Insert hopper

  • Vehicle: Medium-duty (15,000 GVW and up)

  • Length: 8-feet, 9-feet and 10-feet

  • Capacity: 3.0, 4.0 and 4.5 cubic yards

  • Materials: Salt, 50/50 salt-sand and sand

  • Construction: Stainless steel

  • Part #: 63954 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1570 lbs 712 kg Max Capacity Load: 4.5 cu yd 3,4 cu m
    Max Capacity Weight: 12150 lbs 5511 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63955 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1570 lbs 712 kg Max Capacity Load: 4.5 cu yd 3,4 cu m
    Max Capacity Weight: 12150 lbs 5511 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63619 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1360 lbs 617 kg Max Capacity Load: 4.5 cu yd 3,4 cu m
    Max Capacity Weight: 12150 lbs 5511 kg Spreading Material: Salt Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63956 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1426 lbs 647 kg Max Capacity Load: 4.5 cu yd 3,4 cu m
    Max Capacity Weight: 12150 lbs 5511 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63948 Hopper Width: 70" 178 cm Hopper Depth: 108" 274 cm Hopper Height: 40" 102 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1410 lbs 640 kg Max Capacity Load: 4.0 cu yd 3,1 cu m
    Max Capacity Weight: 10800 lbs 4899 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63949 Hopper Width: 70" 178 cm Hopper Depth: 108" 274 cm Hopper Height: 40" 102 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1410 lbs 640 kg Max Capacity Load: 4.0 cu yd 3,1 cu m
    Max Capacity Weight: 10800 lbs 4899 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63615 Hopper Width: 70" 178 cm Hopper Depth: 108" 274 cm Hopper Height: 40" 102 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1200 lbs 544 kg Max Capacity Load: 4.0 cu yd 3,1 cu m
    Max Capacity Weight: 10800 lbs 4899 kg Spreading Material: Salt Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63950 Hopper Width: 70" 178 cm Hopper Depth: 108" 274 cm Hopper Height: 40" 102 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1250 lbs 567 kg Max Capacity Load: 4.0 cu yd 3,1 cu m
    Max Capacity Weight: 10800 lbs 4899 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 64540 Hopper Width: 70" 178 cm Hopper Depth: 148" 376 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1480 lbs 671 kg Max Capacity Load: 4.5 cu yd 3,4 cu m
    Max Capacity Weight: 13000 lbs 5897 kg Spreading Material: Salt Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 64451 Hopper Width: 70" 178 cm Hopper Depth: 124" 315 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1160 lbs 526 kg Max Capacity Load: 3.5 cu yd 2,7 cu m
    Max Capacity Weight: 10800 lbs 4899 kg Spreading Material: Salt Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 64539 Hopper Width: 70" 178 cm Hopper Depth: 136" 345 cm Hopper Height: 44" 112 cm
    Total Height: N/A N/A Spread Width (min-max): 4' - 30' 2 kg - 14 kg Empty Weight: 1320 lbs 599 kg Max Capacity Load: 4.0 cu yd 3,1 cu m
    Max Capacity Weight: 11500 lbs 5216 kg Spreading Material: Salt Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Support

    Support

    Looking for more information on this spreader? See if our tools, programs and documents can help.

    Visit Our MDV Support Page
  • Accessories

    Accessories

    Have an MDV spreader or thinking about getting one? Make sure you have the right accessories to make it even better.

    See All MDV Accessories

Purchase

All the information you need to make a Meyer spreader yours is at your fingertips. Find a Meyer dealer, learn about financing options and purchase online. It’s never been so easy to get your hands on the products more snow removal professionals choose over the competition.
