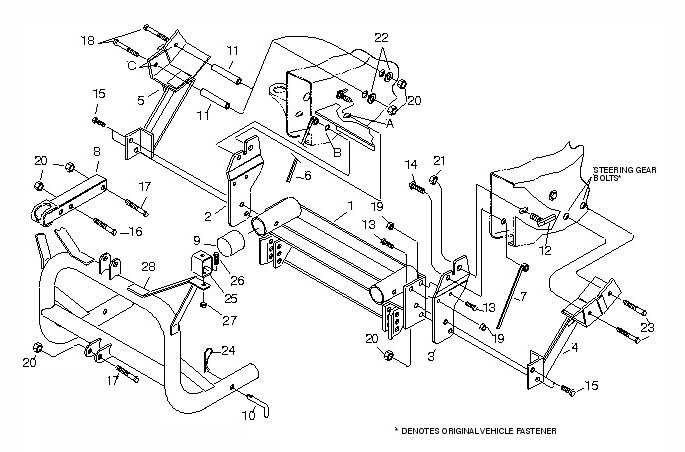

Illustration

17093 : 1991 - 1999 EZ GMC HD 3500 2/WD 15,000 G.V.W.

Ref #	Level	Part #	Description	Qty	Your Price
0		17093 @NLA	MTG CHEVY 3500 HD 91-01CLASSIC No Longer Available	1	$0.00 $0.00	N/A
1		11335 @NLA	CLEVIS FRM CHEVY HD No Longer Available	1	$0.00 $0.00	N/A
2		11732 @NLA	SIDE MEMBER RH No Longer Available	1	$0.00 $0.00	N/A
3		11731	SIDE MEMBER LH	1	$59.99	N/A
4		11381	MTG BRACKET LH	1	$139.99	N/A
5		11382	MTG BRACKET RH	1	$139.99	N/A
6		11756	HANDLE NUT RH	1	$17.70	N/A
7		11757	HANDLE NUT LH	1	$40.00	N/A
8		10514	LIFT ARM WELD	1	$137.52	N/A
9		11544	REC TUBE CAP:CLASSIC MTNG	2	$4.29
10		11006 11101	HINGE PIN HINGE PIN	2	$0.00 $36.00
11		11385	SPACER TUBE	2	$0.01	N/A
12		14595	BOLT 3/4" MTG.-SPEC	2	$53.24	N/A
13		20072	BOLT H 7/16 14 X 1 1/4 G5 ZN	4	$4.29	N/A
14		20139	BOLT H 5/8 11 X 1 1/2 G5 ZN	2	$4.29	N/A
15		20142	BOLT H 5/8 11 X 2 1/4 G5 ZN	4	$4.29	N/A
16		20144	BOLT H 5/8 11 X 2 3/4 G5 ZN	1	$4.29	N/A
17		20146	BOLT H 5/8 11 X 3 1/4 G5 ZN	2	$4.29	N/A
18		20149	BOLT H 5/8 11 X 4 G5 ZN	2	$4.29	N/A
19		20306	LOCKNUT ESNA 7/16-14 ZINC PL	4	$4.29	N/A
20		20309	LOCKNUT ESNA 5/8-11 ZINC PL	9	$4.29	N/A
21		20310	LOCKNUT ESNA 3/4-10 ZINC PL	2	$4.29	N/A
22		20357	WASHER FLAT 5/8 ZN	2	$4.29
23		22123	BOLT H M14 X 2 X 140 MM CP	2	$5.74	N/A
24		21984	HAIRPIN COTTER	2	$4.29	N/A
25		11368	BRKT: LIGHT ELEVATION	2	$22.02	N/A
26		20095	BOLT H 1/2-13X1 1/2 GR5 ZN	2	$4.29	N/A
27		20307	LOCKNUT ESNA 1/2-13 ZINC PL	2	$4.29	N/A
99		08609	HDWE BAG MTG CHEVY 3500 17093	1	$126.07	N/A
99		08626	LIGHT ELEVATION KIT:	1	$55.98	N/A
