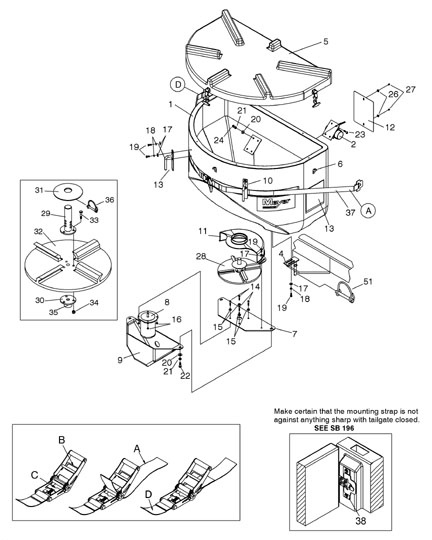

Illustration

38000 : Mate Spreader Assembly

Part with a strikethrough indicates it is no longer available. A substitute is listed if avialable.

Ref #	Part #	Description	Qty	Your Price
0	21834	SET SCR 3/8 24 X 3/8	1	$4.29
0	20303	LOCKNUT ESNA 1/4-20 ZINC PL	3	$4.29	N/A
0	36152	SPINNER HUB WELD	1	$32.17	N/A
0	36244 22800	SPD CNTRL T-GATE SPR USE 22800 SPRD CNTRL MEY DLX VAR SPEED	1	$0.00 $386.69	N/A
0	38000	SPRD MEY MATE XL 9.0 CU. FT.	1	$1,974.96	N/A
0	38002	SPINNER PLASTIC	1	$203.86	N/A
0	38050	SPRD VIBRATOR KIT W/ HDWE	1	$346.19	N/A
0	38052	BAG-6 TIES MALE & RING TERM	1	$11.10	N/A
0	38037	SPRD FLOW GATE CONTROL MATE	1	$43.75	N/A
0	20006	BOLT H 1/4 20 X 1-1/4 GR 2 BLK	3	$4.29	N/A
0	38035	AUGER WELD	1	$54.00	N/A
0	22399	WIRE LYNCH 1/4 X 1 3/4(18-8SS)	1	$18.41	N/A
1	38083	DOUBLE WALL HOPPER	1	$930.00	N/A
1	38083	DOUBLE WALL HOPPER	1	$930.00	N/A
1	38083	DOUBLE WALL HOPPER	1	$930.00	N/A
1	38083	DOUBLE WALL HOPPER	1	$930.00	N/A
1	38083	DOUBLE WALL HOPPER	1	$930.00	N/A
2	38050	SPRD VIBRATOR KIT W/ HDWE	1	$346.19	N/A
2	38070	SPRD VIBRATOR	1	$215.26	N/A
2	38070	SPRD VIBRATOR	1	$215.26	N/A
2	38070	SPRD VIBRATOR	1	$215.26	N/A
2	38070	SPRD VIBRATOR	1	$215.26	N/A
3	38056	SPRD VIBRATOR EXT CORD 36"	1	$31.00
3	38051	20' WIRE W/J928 PLUG	1	$52.04	N/A
4	38006	POST-TO-BUMPER	1	$15.28	N/A
4	38006	POST-TO-BUMPER	1	$15.28	N/A
4	38006	POST-TO-BUMPER	1	$15.28	N/A
4	38006	POST-TO-BUMPER	1	$15.28	N/A
5	38082 38091	ONE PIECE HOPPER LID USE 38091 ONE PIECE LID W/ LATCHES	1	$0.00 $207.04	N/A
5	38082 38091	ONE PIECE HOPPER LID USE 38091 ONE PIECE LID W/ LATCHES	1	$0.00 $207.04	N/A
5	38091	ONE PIECE LID W/ LATCHES	1	$207.04	N/A
6	36543	LATCH KEEPER	3	$21.82	N/A
6	38084 38091	TWIST LID-MALE MATE USE 38091 ONE PIECE LID W/ LATCHES	1	$0.00 $207.04	N/A
6	38084 38091	TWIST LID-MALE MATE USE 38091 ONE PIECE LID W/ LATCHES	1	$0.00 $207.04	N/A
7	38003	MOTOR PLATE	1	$0.01	N/A
7	38003	MOTOR PLATE	1	$0.01	N/A
7	38003	MOTOR PLATE	1	$0.01	N/A
8	36402 36402A	MTR ONLY 1/6HP CMRL USE 36402A MOTOR 1/6HP W / WIRE	1	$0.00 $510.45
8	36402 36402A	MTR ONLY 1/6HP CMRL USE 36402A MOTOR 1/6HP W / WIRE	1	$0.00 $510.45
8	36402 36402A	MTR ONLY 1/6HP CMRL USE 36402A MOTOR 1/6HP W / WIRE	1	$0.00 $510.45
8	36402 36402A	MTR ONLY 1/6HP CMRL USE 36402A MOTOR 1/6HP W / WIRE	1	$0.00 $510.45
9	38081	MOTOR SHROUD	1	$182.00	N/A
9	38081	MOTOR SHROUD	1	$182.00	N/A
9	38081	MOTOR SHROUD	1	$182.00	N/A
9	38081	MOTOR SHROUD	1	$182.00	N/A
10	38046	HANDLE & STRAP GUIDE	1	$11.10	N/A
10	38046	HANDLE & STRAP GUIDE	1	$11.10	N/A
10	38046	HANDLE & STRAP GUIDE	1	$11.10	N/A
10	38046	HANDLE & STRAP GUIDE	2	$11.10	N/A
11	38001	SPINNER BAND/SHROUD	1	$0.01	N/A
11	38001	SPINNER BAND/SHROUD	1	$0.01	N/A
11	38001	SPINNER BAND/SHROUD	1	$0.01	N/A
11	38001	SPINNER BAND/SHROUD	1	$0.01	N/A
12	38008	COVER PLATE VIBRATOR	1	$18.99	N/A
12	38008	COVER PLATE VIBRATOR	1	$18.99	N/A
12	38008	COVER PLATE VIBRATOR	1	$18.99	N/A
12	38008	COVER PLATE VIBRATOR	1	$18.99	N/A
13	22387	38000 SAFETY DECAL	1	$11.90	N/A
13	22387	38000 SAFETY DECAL	1	$11.90	N/A
13	22387	38000 SAFETY DECAL	1	$11.90	N/A
13	22387	38000 SAFETY DECAL	1	$11.90	N/A
14	20029	BOLT H 5/16 18 X 1 1/2 G2 ZN	4	$4.29	N/A
14	20029	BOLT H 5/16 18 X 1 1/2 G2 ZN	1	$4.29	N/A
14	20029	BOLT H 5/16 18 X 1 1/2 G2 ZN	1	$4.29	N/A
14	20029	BOLT H 5/16 18 X 1 1/2 G2 ZN	1	$4.29	N/A
15	20352	WASHER FLAT 5/16 ZN	5	$4.29
15	20352	WASHER FLAT 5/16 ZN	5	$4.29
15	20352	WASHER FLAT 5/16 ZN	5	$4.29
15	20352	WASHER FLAT 5/16 ZN	4	$4.29
16	20313	NUT ESLOK 5/16-18 ZINC PL	4	$4.29	N/A
16	20313	NUT ESLOK 5/16-18 ZINC PL	1	$4.29	N/A
16	20313	NUT ESLOK 5/16-18 ZINC PL	1	$4.29	N/A
16	20313	NUT ESLOK 5/16-18 ZINC PL	1	$4.29	N/A
17	22230	WASHER FLAT 3/8 SS	11	$4.29
17	22230	WASHER FLAT 3/8 SS	11	$4.29
17	22230	WASHER FLAT 3/8 SS	11	$4.29
17	22230	WASHER FLAT 3/8 SS	11	$4.29
18	22379	3/8 LOCKWASHER 18-8	10	$2.99	N/A
18	22379	3/8 LOCKWASHER 18-8	10	$2.99	N/A
18	22379	3/8 LOCKWASHER 18-8	10	$2.99	N/A
19	22383	BOLT H 3/8-16 X 7/8 18-8	7	$0.47	N/A
19	22383	BOLT H 3/8-16 X 7/8 18-8	7	$0.47	N/A
19	22383	BOLT H 3/8-16 X 7/8 18-8	7	$0.47	N/A
20	22381 22733	1/2 FLAT WASHER 18-8 FLAT WASHER 1/2 SS	2	$0.00 $4.29
20	22381 22733	1/2 FLAT WASHER 18-8 FLAT WASHER 1/2 SS	2	$0.00 $4.29
20	22381 22733	1/2 FLAT WASHER 18-8 FLAT WASHER 1/2 SS	2	$0.00 $4.29
21	21380	1/2 Lockwasher	2	$0.00	N/A
21	21380	1/2 Lockwasher	2	$0.00	N/A
21	21380	1/2 Lockwasher	2	$0.00	N/A
22	22386	BOLT H 1/2-13 X 1 1/2 18-8	2	$2.99	N/A
22	22386	BOLT H 1/2-13 X 1 1/2 18-8	2	$2.99	N/A
22	22386	BOLT H 1/2-13 X 1 1/2 18-8	2	$2.99	N/A
23	22384	BOLT H 3/8-16 X 1 3/4 18-8	4	$0.55	N/A
23	22384	BOLT H 3/8-16 X 1 3/4 18-8	4	$0.55	N/A
23	22384	BOLT H 3/8-16 X 1 3/4 18-8	4	$0.55	N/A
24	22382	3/8-16 HEX NUT 18-8	4	$0.49	N/A
24	22382	3/8-16 HEX NUT 18-8	4	$0.49	N/A
24	22382	3/8-16 HEX NUT 18-8	4	$0.49	N/A
25	36241	PLUG ASSEMBLY - MOTOR	1	$26.82	N/A
25	36241	PLUG ASSEMBLY - MOTOR	1	$26.82	N/A
25	36241	PLUG ASSEMBLY - MOTOR	1	$26.82	N/A
26	22248	WASHER FLAT 1/4 (18-8 SS)	2	$2.99	N/A
26	22248	WASHER FLAT 1/4 (18-8 SS)	2	$2.99	N/A
26	22248	WASHER FLAT 1/4 (18-8 SS)	2	$2.99	N/A
27	22393	SCRW MACHINE 1/4 20 X 3/8 18-8	2	$0.22	N/A
27	22393	SCRW MACHINE 1/4 20 X 3/8 18-8	2	$0.22	N/A
27	22393	SCRW MACHINE 1/4 20 X 3/8 18-8	2	$0.22	N/A
28	38040	SPINNER AUGER ASSY	1	$0.01	N/A
28	38040	SPINNER AUGER ASSY	1	$0.01	N/A
28	38040	SPINNER AUGER ASSY	1	$0.01	N/A
29	38035	AUGER WELD	1	$54.00	N/A
30	36152	SPINNER HUB WELD	1	$32.17	N/A
31	38037	SPRD FLOW GATE CONTROL MATE	1	$43.75	N/A
32	38002	SPINNER PLASTIC	1	$203.86	N/A
33	20006	BOLT H 1/4 20 X 1-1/4 GR 2 BLK	3	$4.29	N/A
34	20303	LOCKNUT ESNA 1/4-20 ZINC PL	3	$4.29	N/A
35	21834	SET SCR 3/8 24 X 3/8	1	$4.29
36	22399	WIRE LYNCH 1/4 X 1 3/4(18-8SS)	1	$18.41	N/A
37	38044	STRAP-ASSY	1	$31.29	N/A
37	38044	STRAP-ASSY	1	$31.29	N/A
38	38043	KIT: LATCH	1	$98.00	N/A
38	38043	KIT: LATCH	1	$98.00	N/A
38	38043	KIT: LATCH	1	$98.00	N/A
39	36244 22800	SPD CNTRL T-GATE SPR USE 22800 SPRD CNTRL MEY DLX VAR SPEED	1	$0.00 $386.69	N/A
44	36240	SOCKET ASSEMBLY	1	$71.84
45	36248	DUMMY MATE	1	$4.29
46	36242	WIRE ASSEMBLY 264"	1	$98.74
47	36229	WIRE-ELECTRICAL	1	$5.04	N/A
48	36247	WIRE ELECTRICAL 96 IN.	1	$11.55
