LPV Insert Hopper Spreader

LPV Insert Hopper Spreader

Maximize the Performance of Your Pickup

Meyer’s versatile line of insert spreaders fits into most pickups and utility vehicles. The Meyer LPV spreader shares many of the long-lasting features of our larger insert hopper spreaders.

Performance

Performance

Reliable Performance

This year-round performer can spread top dressings like fertilizer and seed, as well as salt and sand on snow and ice. The Meyer LPV is powered by a sealed 12V electric motor. It has fewer parts than competing models, meaning it requires less maintenance and downtime.



Precise Spreading

When you’re spreading salt and other materials on ice and snow, it’s critical to spread them in precisely the right place. Meyer LPV salt spreaders have two internal and four external baffle adjustment systems to help you place the material in the right spot, every time. Whether you want to spread 1,2m to the left, 1,2m to the right, or spread a 9m center spread, you can easily adjust the spreading pattern to meet your unique demands

Precise Spreading

Belt-Over Chain Conveyor

With Meyer salt spreaders, high performance in virtually any condition - no matter how snowy - is not optional. It’s mandatory. That’s why our belt-over chain conveyor system allows for sure, precise metering of materials including salt, sand, fertilizer, and top soil. It makes the Meyer LPV perfect for all-season use.

Belt-Over Chain Conveyor

An Insert Spreader for All Seasons

The LPV is designed to apply a variety of materials including salt, seed and fertilizer so you get year-round use of your spreader.

An Insert Spreader for All Seasons

Reliability

Reliability

Who Has Time For Downtime?

Your spreader needs to be up and running so that when the weather calls, you can answer. At Meyer, we build reliability into our products. Some of the key built-to-last features of Meyer’s LPV include:

  1. All stainless steel construction prevents rust and corrosion leading to longer life.

  2. Slot and tab construction is a stronger and more precise way to fit steel together. It delivers greater reliability over the course of ownership.

  3. Continuous welding on the inside of the hopper spreaders prevents material from pitting and leading to premature rusting.

  4. The highest tensile strength drag chain in the industry for consistent pulling of all types of materials through the spreader.

  5. Grease zerks at all critical points for keeping your investment up and running.

  6. Stainless steel external baffle adjustment rods prevent the baffles from seizing and remaining stuck in one location.

  7. Largest-in-the-industry 33cm spinner disc, and spreads material from 1.20m to 6m.

Ease of Use

Ease of Use

Less Maintainance, Less To Go Wrong

Meyer’s LPV offers contractor-grade performance with the simplicity of an electric motor. Our electric-drive LPV offers the best-in-industry performance with the simplicity of no engines, no carburetors, no clutches and no belts. Our heavy-duty 3/4 HP sealed electric motor drives the self-cleaning drag chain and poly spinner for spreading salt, sand and salt/sand mix anywhere from 1.20m to 6m.

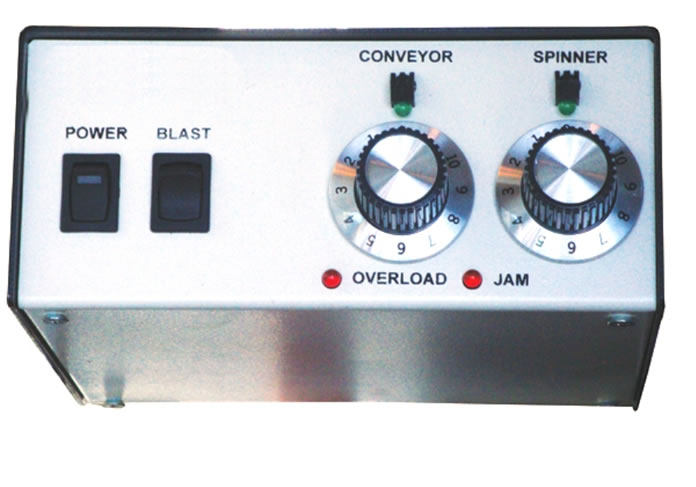

In-Cab Variable Speed Controller

The LPV’s in-cab variable speed controller, with blast feature, lets you independently adjust the conveyor and the spinner providing integrated variable speed control of the LPV spreader.

In-Cab Variable Speed Controller

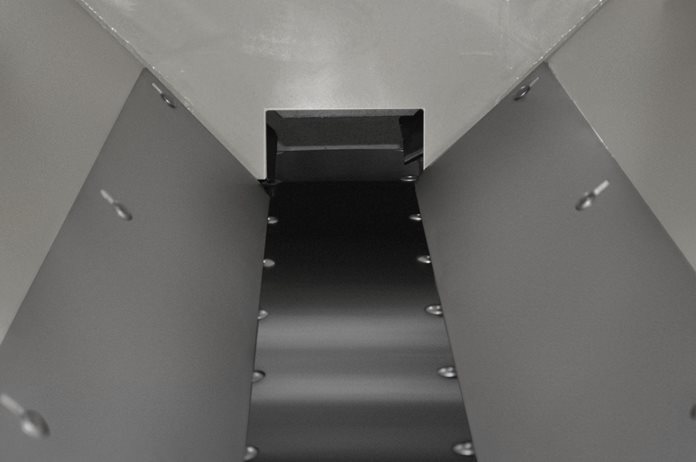

Bolt in Chain Shield

To keep your LPV spreader running at optimal conditions, our bolt-in chain shield allows you to adjust the shield to the optimal position to prevent material from clogging your drag chain. In addition, the chain shield can easily be removed for routine maintenance of your spreader.

Bolt in Chain Shield

Specifications

Get to know the LPV.



Quick Facts:

  • Type: Insert hopper

  • Vehicle: Light pickups and utility vehicles

  • Length: 90 cm - 180 cm

  • Capacity: 0.3 m3 - 0.7 m3

  • Materials: Salt, fine salt, 50/50 salt-sand, sand, lava rock, melt, fertilizer and seed.

  • Construction: Stainless steel

  • Part #: 63394 Hopper Width: 36" 91 cm Hopper Depth: 36" 91 cm Hopper Height: 25" 64 cm
    Total Height: N/A N/A Spread Width (min-max): 3' - 20' 1 kg - 9 kg Empty Weight: 396 lbs 180 kg Max Capacity Load: 0.3 cu yd 0,2 cu m
    Max Capacity Weight: 810 lbs. 367 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63395 Hopper Width: 36" 91 cm Hopper Depth: 48" 122 cm Hopper Height: 25" 64 cm
    Total Height: N/A N/A Spread Width (min-max): 3' - 20' 1 kg - 9 kg Empty Weight: 434 lbs 197 kg Max Capacity Load: 11.5 cu ft 325,6 L
    Max Capacity Weight: 1161 lbs. 527 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63136 Hopper Width: 36" 91 cm Hopper Depth: 60" 152 cm Hopper Height: 25" 64 cm
    Total Height: N/A N/A Spread Width (min-max): 3' - 20' 1 kg - 9 kg Empty Weight: 472 lbs 214 kg Max Capacity Load: 15 cu ft. 424,8 L
    Max Capacity Weight: 1512 lbs. 686 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Part #: 63137 Hopper Width: 36" 91 cm Hopper Depth: 72" 183 cm Hopper Height: 25" 64 cm
    Total Height: N/A N/A Spread Width (min-max): 3' - 20' 1 kg - 9 kg Empty Weight: 510 lbs 231 kg Max Capacity Load: 18.5 cu ft 523,9 L
    Max Capacity Weight: 1863 lbs 845 kg Spreading Material: Sand, Salt Mixed Warranty: 1 Year Hopper Material: Stainless Steel
    Spinner Diameter: 13" 33 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
  • Support

    Support

    Looking for more information on this spreader? See if our tools, programs and documents can help.

    Visit Our LPV Support Page
  • Accessories

    Accessories

    Have a LPV spreader or thinking about getting one? Make sure you have the right accessories to make it even better.

    See All LPV Accessories
